IP54 (PV8000)

5 out of 5

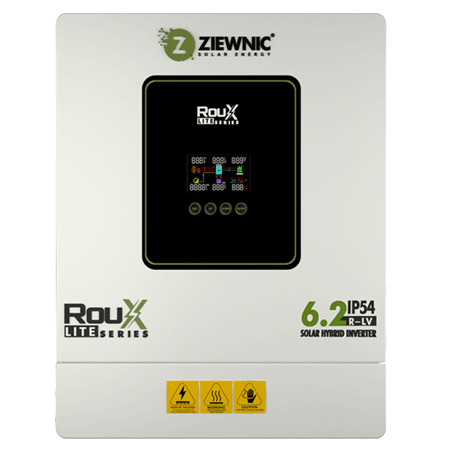

Introducing Pakistan’s Most Reliable Generator-Compatible Solar Inverter, built with high-eciency MOSFET technology and a larger chopper design for stronger, stable performance. The ROUX Lite Series supports multiple modes (ON/OFF/MKS/KS) and features a powerful 120A MPPT solar charge controller, IP54 dust & water resistance, and a wide 90–500V PV input range.
Delivering 100% pure sine wave output, 1.0 power factor, 200A AC+Solar charging, and operation with or without batteries, it ensures maximum exibility. It includes 1-button restore, battery equalization, fault-code recording, automatic electronic breaker, and anti-dust protection for harsh environments.
A new color touch-screen LCD, optional WiFi, and compatibility with all lithium batteries make it user-friendly. With 98% real-time sharing, 120% overload protection, 2× surge for 5 seconds, dual output for normal and heavy loads, 27A PV input, and support for on-grid, o-grid, and hybrid modes, it also oers net metering and a built-in zero export system—delivering a complete, next-generation power solution.

SPECIFICATION
Phase	1-Phase
Maximum PV Input Power	8000 W
Rated Output Power	6200 W
Maximum Solar Charging Current	120A
PV INPUT ( DC )
Nominal DC Voltage/Maximum DC Voltage	360 VDC/500 VDC
Start-up Voltage/Initial Feeding Voltage	90 VDC/120 VDC
Maximum DC Voltage	60~450 VDC
Number of MPPT Trackers/Maximum Input Current	1/32 A
AC Input
AC Start-up Voltage/Auto Restart Voltage	120-140 VAC/180 VAC
Acceptable Input Voltage Range	90-280 VAC or 170-280 VAC
Maximum AC Input Current	40A
Nominal operating frequency	50/60Hz
Surge power	13000W
TWO LOAD OUTPUT POWER(V2.0)
Full Load	6200 W
Maximum Main Load	6200 W
Maximum Second Load(battery mode)	2160 W
Main Load Cut Off Voltage	44 VDC
Main Load Return Voltage	54 VDC
GRID OUTPUT ( AC )
Nominal Output Voltage	220/230/240 VAC
Output Voltage Range	195.5-253 VAC
Nominal Output Current	29A
Power Factor	>0.99
Feed-in Grid Frequency Range	49~51±Hz
BATTERY MODE OUTPUT ( AC )
Nominal Output Voltage	220/230/240 VAC
Output Waveform	PURE SINE WAVE
Efficiency(DC to AC)	94%
BATTERY & CHARGER
Nominal DC Voltage	48 VDC
Maximum Charging Current (Solar to AC)	120A
Maximum AC Charging Current	100A
EFFICIENCY
Maximum Conversion Efficiency (Solar to AC)	98%
GENERAL
Dimension W x H x D (mm)	413484131
Net Weight (kgs)	16
Communication Port	RS232/Wi-Fi/GPRS
ENVIRONMENT
Operating Temperature	-10~50°C
IP Grade	IP54
