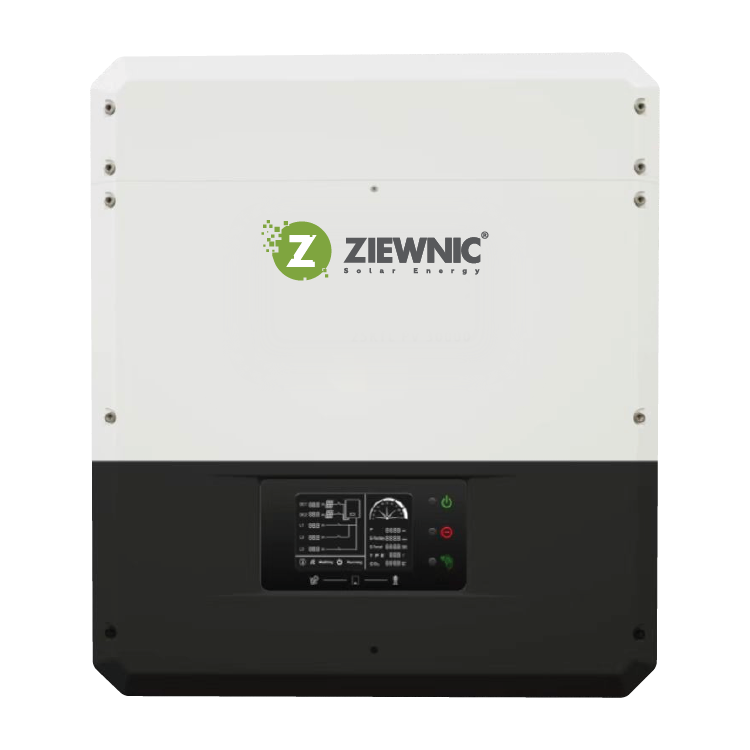

TriPower X25KTL
Download Catalog
-
Rs 452,000.00
Category : TriPower 3 Phase ON Grid Inverter Series
Availability : Out of Stock
- Quick and easy to install with basic tools
- Sufficient installation accessories and various optional accessories
- Quick set up WIFI to APP
- International quality standards
- IP65 waterproof for outdoor use
- Transformerless with three level topology
- Dual MPPT for Efficient tracking
- Particular design for anywhere
- Smart string monitoring
| Max DC Power (W) | |
|---|---|
| Max DC Power (W) | 30000 |
| Max DC Voltage VDC) | 1000 |
| Min Working Voltage (VDC) | 250 |
| MPPT Voltage range (VDC) | 250~850 |
| Max Input Current / Per String (A) | 26/26 |
| Number of MP Trackers | 2 |
| Strings Per MP Trackers | 4 |
| AC SIDE / OUTPUT PARAMETERS | |
| AC Nominal Power W | 25000 |
| Max AC apparent Power (VA) | 27500 |
| Max output current (A) | 36 |
| Nominal AC output | 50/60 Hz; 400Vac |
| AC output range | 45/55 Hz; 280 ~ 490Vac (Adi) |
| Power factor | 0.8 Leading... 0.8 Laging |
| Harmonics | < 1.5% |
| Grid type | 3 W/N/PE |
| EFFICIENCY | |
| Max Efficiency | 98.7% |
| Euro Efficiency | 98.2% |
| MPPT Efficiency | 99.9% |
| SAFETY & PROTECTION | |
| DC Reverse-Polarity Protection | Yes |
| DC Breaker | Yes |
| DC Breaker | Yes |
| Leakage Current Protection | Yes |
| Insulation Impedance Detection | Yes |
| Residual Current Protection | Yes |
| GENERAL SPECIFICATIONS | |
| Operating Temerature Range | -25 ~ +60 |
| Degree of Protection | IP65 |
| Cooling Concept | Natural Convection |
| Topology | Transformerless |
| Display | LCD |
| Humidity | 0-95%, No Condensation |
| Communication | Standard WIFI; RS485 (Optional) |
| Warranty | 5 Years (Terms & Condition Apply) |
