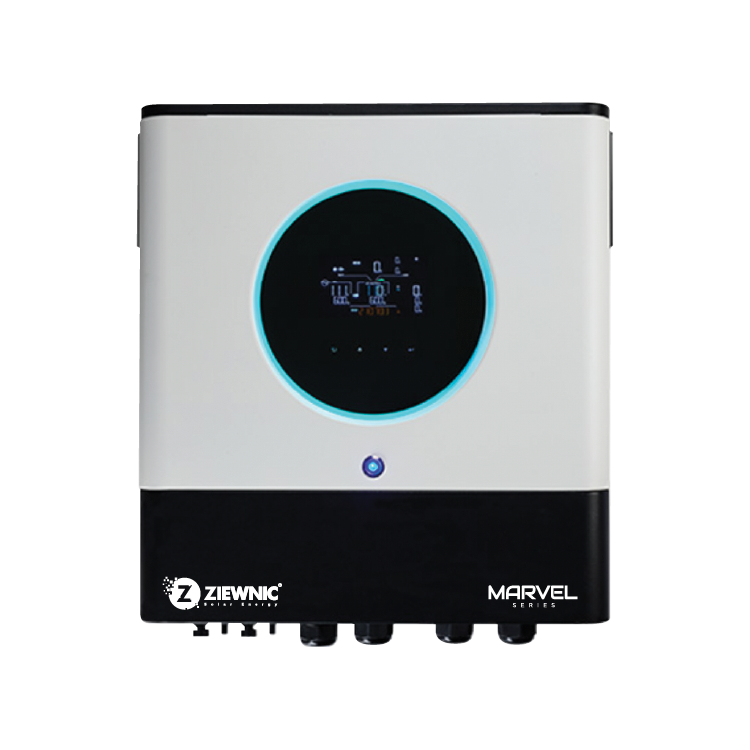

MARVEL 5G EUROPEAN - PV 15000 (12 KW)
Download Catalog
-
Rs 0.00
Category : Marvel Series
Availability : Out of Stock
- Introducing 1st time in Pakistan, single phase Inverters support three phase when installed in parallel
- 100% Pure Sine wave Inverter
- Touch screen control module with various communications
- PV and utility power the load at the same time can be set
- Output power factor PF-1.0
- Energy generated record, load record history information and fault record
- Support Peak-Valley Charge
- Parallel operation up to 6 units
- Built-in two 15000W MPPTs, with wide input range: 90-450VDC
- Reserved communication parts (RS485, CAN-BUS, RS232)
- Upgraded 5th generation smart and intelligent solar inverter
- Zero transfer time
- Efficiently Work with & with out battery
- Optional Wi-Fi interface with Android & IOS
- Battery Equalization/Compatible with Li-ion, LifePo4 and etc )
- Conformal Coating to Prevent from Dust and Humidity
- Compatibility to utility main or generator units
- Replaceable fan design for ease of maintanance
- Support USB on-the-Go option
- Battery independent design
- Selectable high power charging current
- Over load and short circuit protection
- Dual outputs for smart load management
- PV input current increase 27*2A
- Status indication with RGB lights
- European design and engineered in Taiwan
- Built in zero export, 100% reverse grid feeding
| SPECIFICATION | |
|---|---|
| Max. PV Input Power | 15000W |
| Rated AC Output Power | 12000W |
| GRID TIE OPERATION | |
| - | - |
| INPUT | |
| Voltage | 230 VAC |
| Selectable Voltage Range | 170-280 VAC (For Personal Computers); 90-280 VAC (For Home Appliances) |
| Frequency Range | 50Hz/60Hz (Auto Sensing |
| OUTPUT | |
| AC Voltage Regulation ( Batt . Mode ) | 230VAC +/- 5% |
| Surge Power | 22000VA |
| Efficiency ( Peak ) | 93% |
| Transfer Time, | 10ms (For Personal Computers); 20ms (For Home Appliances) |
| Waveform | Pure Sine Wave |
| DC Voltage | N/A |
| BATTERY | |
| Battery Voltage | 48VDC |
| Floating Charge Voltage | 54VDC |
| Overcharge Protection | 63VDC |
| SOLAR CHARGER & AC CHARGER | |
| Maximum PV Array Open Circuit Voltage | 500 VDC |
| Maximum PV Array Power | 15000W (7500 X 2) |
| MPPT Range @ Operating Voltage | 90~450 VDC |
| Maximum Solar Charge Current | 150A |
| Maximum AC Charge Current | 150A |
| Maximum Charge Current | 150A |
| Solar Charge Type | MPPT |
| Maximum PV Input Current | 27A X 2 (Max 40A) |
| PHYSICAL | |
| Dimension , D x W x H ( mm ) | 147.4 X 432.5 X 553.6 |
| Net Weight ( kgs ) | 18.4 |
| Communication Interface | USB / RS232 / RS485 / Wi-Fi / Dry contact |
| OPERATING ENVIRONMNET | |
| Humidity | 5% to 95% Relative Humidity (Non~Condensing) |
| Operating Temperature | -10 to 50 Degree Centigrade |
| Storage Temperature | -15 to 60 Degree Centigrade |
