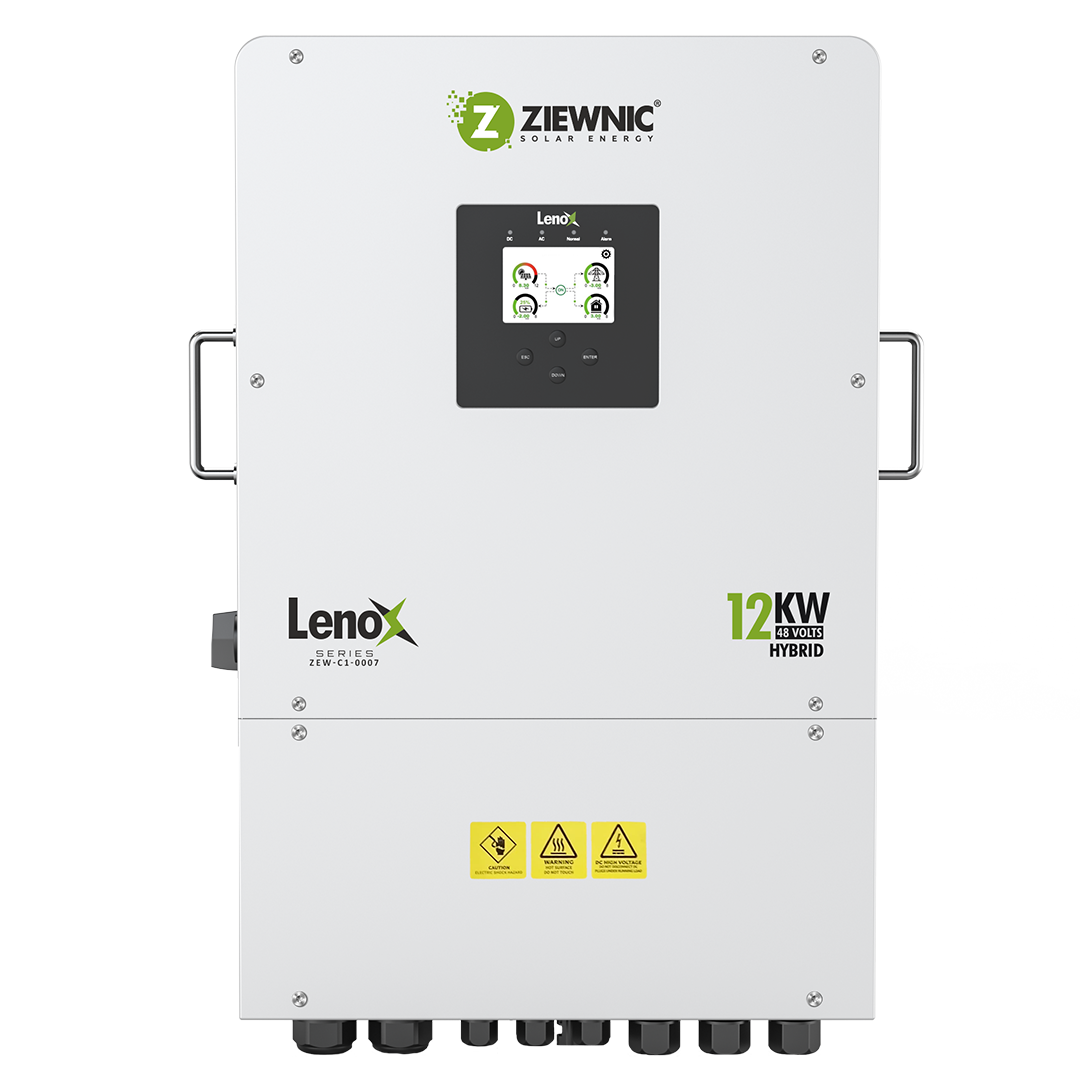

HYBRID INVERTER 12KW - 48V
Download Catalog
-
Rs 0.00
Category : Lenox Series Hybrid (ZEW-C1-0007)
Availability : Out of Stock
- Compatible with almost all 48V - LifePO4 Battery Pack
- External light indicator, logging status at a glance
- Colorful Touch LCD
- 6 Time Periods for battery charging / discharging
- Support storing energy from Diesel Generator
- AC Coupling to retrofit existing solar system
- Plug and play, pick power with-in inverter, no external power needed, easy to install
- Enhance stability
- External design, easier to replace faulty equipment
- End-user can monitor yields at any time.
| SPECIFICATION | |
|---|---|
| Rated Power | 12000W |
| PV INPUT | |
| Max.power(KW) | 15600 |
| Max.DC voltage(V) | 800 |
| MPPT voltage range(V) | 200 - 650 |
| Max.input current(A) | 32 + 18 |
| Max.input strings number | 2+1 |
| AC OUTPUT (GRID-TIED) | |
| Grid voltage/range(V) | 230/400V (Three Phase) |
| Frequency(Hz) | 50/60 |
| PF | 0.8lagging-0.8leading |
| THDi | <3% |
| AC output topology | L+N+PE |
| BATTERY | |
| Battery Voltage Range (V) | 40~63 |
| Max.charging voltage(V) | 63 |
| Max.charge/discharge current(A) | 240/240 |
| Battery Type | Lithium / Lead-acid / Tubuler |
| UPS OUTPUT | |
| Rated power (kw) | 12 |
| Peak Power (Off Grid) | 1.5 Times of rated power 10Sec |
| Rated output current(A) | 30 |
| Rated frequency (Hz) | 50/60 |
| Transfer Time(ms) | <10 |
| THDu | <10% |
| Overload capacity | 5s > 110%load; 10s >≥101%~110% load |
| PROTECTION & FEATURE | |
| Anti-island protection | Yes |
| Insulation monitoring | Yes |
| Residual current monitoring | Yes |
| Arc fault protection | Yes (Optional) |
| Parallel function | Yes, Multiple |
| Other protection | AC Over-Current, AC Over-Voltage, Over Temperature Protection |
| GENERAL SPECIFICATIONS | |
| Efficiency (peak) | 99% |
| Degree of protection | Class 1 |
| Operation temperature range (°C) | -25°C~60°C, >45°C derating |
| Cooling | Smart Cooling |
| Relative humidity | 5~95%(non-condensing) |
| Altitude | (>2000m Derating) |
| Dimensions W x D x H(mm) | 446*486*256 |
| EMC/Safety Regulation | IEC/EN 62109-1, IEC/EN62109-2, IEC/EN 61000-6-2, IEC/EN 61000-6-4 |
| Isolation Resister Detection | Yes |
| Self-consumption(W) | <5 |
| DISPLAY AND COMMUNICATION | |
| Display | Touch screen |
| Interface | Standard:RS232,CAN&RS485; Optional:WiFi,CT |
| Safety standard | EN/IEC62109-1,EN/IEC62109-2 |
