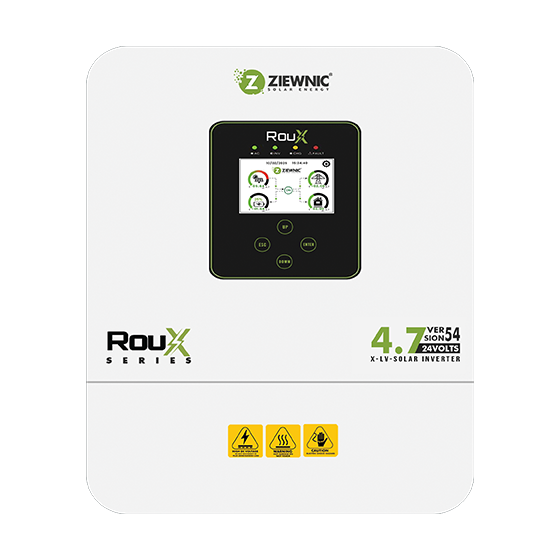

IP54 4.7KW - ZIEWNIC

IP54 4.7KW

5 out of 5

FIRST TIME IN PAKISTAN, IP54 INVERTER WITH ALUMINIUM CASING AND REPLACEMENT WARRANTY
HIGH FREQUENCY INVERTER, HIGH EFFICIENCY, LIGHT WEIGHT
OUTPUT POWER FACTOR 1
SUPPORT LITHIUM BATTERY ACTIVATION AND WAKE-UP START FUNCTION
SUPPORT LITHIUM BATTERY, GEL BATTERY, VRLA BATTERY
98% REAL TIME SHARING
COLORFUL TOUCH LCD
HIGH PV INPUT VOLTAGE RANGE (60~500 VDC)
REAL-TIME DISPLAY OF ACTUAL LOAD POWER
PURE SINE WAVE OUTPUT, ADAPTABLE TO DIFFERENT LOADS
OUTPUT SHORT CIRCUIT PROTECTION FUNCTION
IP54 DUST & WATER RESISTANCE
ACCORDING TO USER NEEDS, MANY PARAMETERS CAN BE ADJUSTED
BUILT-IN Wi-Fi FOR END-USER CAN MONITOR YIELDS AT ANY TIME.
EXTERNAL LIGHT INDICATOR, LOGGING STATUS AT A GLANCE

SPECIFICATION
Rated Power	5000W
INPUT
AC Input	220/230/240VAC
Input Voltage Range	90-280VAC±3V（NORMAL MODE) 170-280VAC±3V（UPS MODE）
Frequency	50HZ/60HZ(SELF-ADAPTION)
OUTPUT
Rated Power PV MODE	4700W
Output voltage	220/230/240VAC±5%
Output Frequency	50/60HZ±0.1%
Output Wave	PURE SINE WAVE
Transfer Time (Adjustable)	10MS FOR COMPUTER EQUIPMENT, 20MS FOR HOUSEHOLD EQUIPMENT
Peak Power	8000VA
Overload Ability	BATTERY MODE: 10.5S@110%~150% LOAD 5.5S@150%~200% LOAD 200MS@>200% LOAD
Peak Efficiency	>94%
BATTERY
Rated Power DC Mode	4500W
Rated Voltage	24VDC
Constant charging voltage (Adjustable)	28.2VDC
Float charging voltage (Adjustable)	27VDC
CHARGER
Max PV Input Wattage	7000W
MPPT Tracking Range	60~500VDC
Best Vmp Working Range	300~400VDC
MAX PV Input Voltage	500VDC
MAX PV Input Current	32A
MAX PV Charge Current	120A
MAX AC Charging Current	100A
MAX Charge Current	120A
LCD DISPLAY
IP GRADE
IP Grade	IP54
COMMUNICATION SPECIFICATION
Communication Port	RS232
TEMPERATURE
Operating temperature	0~50°C
Operating environment humidity	20%~95%
Storage temperature	-15~60°C
Noise	≤50DB
DIMENSION
Dimension mm(HxWxD)	529 X 411.5 X 111.5
