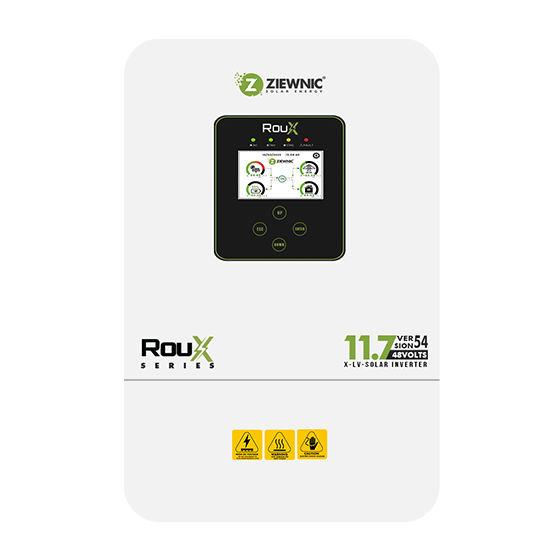

IP54 11.7 KW

5 out of 5

FIRST TIME IN PAKISTAN, IP54 INVERTER WITH ALUMINIUM CASING AND REPAIRABLE WARRANTY
HIGH FREQUENCY INVERTER, HIGH EFFICIENCY, LIGHT WEIGHT
OUTPUT POWER FACTOR 1
SUPPORT LITHIUM BATTERY ACTIVATION AND WAKE-UP START FUNCTION
SUPPORT LITHIUM BATTERY, GEL BATTERY, VRLA BATTERY
98% REAL TIME SHARING
COLORFUL TOUCH LCD
HIGH PV INPUT VOLTAGE RANGE (60~500 VDC)
REAL-TIME DISPLAY OF ACTUAL LOAD POWER
PURE SINE WAVE OUTPUT, ADAPTABLE TO DIFFERENT LOADS
OUTPUT SHORT CIRCUIT PROTECTION FUNCTION
IP54 DUST & WATER RESISTANCE
ACCORDING TO USER NEEDS, MANY PARAMETERS CAN BE ADJUSTED
BUILT-IN Wi-Fi FOR END-USER CAN MONITOR YIELDS AT ANY TIME.
EXTERNAL LIGHT INDICATOR, LOGGING STATUS AT A GLANCE

SPECIFICATION
Rated Power	12000W
INPUT
AC Input	220/230/240VAC
Input Voltage Range	90-280VAC±3V（NORMAL MODE) 170-280VAC±3V（UPS MODE）
Frequency	50HZ/60HZ(SELF-ADAPTION)
OUTPUT
Rated Power PV MODE	11700W
Output voltage	220/230/240VAC±5%
Output Frequency	50/60HZ±0.1%
Output Wave	PURE SINE WAVE
Transfer Time (Adjustable)	10MS FOR COMPUTER EQUIPMENT, 20MS FOR HOUSEHOLD EQUIPMENT
Peak Power	22200VA
Overload Ability	BATTERY MODE: 10.5S@110%~150% LOAD, 5.5S@150%~200% LOAD, 200MS@>200% LOAD
Peak Efficiency	>94%
BATTERY
Rated Power DC Mode	11000W
Rated Voltage	48VDC
Constant charging voltage (Adjustable)	56.4VDC
Float charging voltage (Adjustable)	54VDC
CHARGER
Max PV Input Wattage	15000W
MPPT Tracking Range	90~500VDC
Best Vmp Working Range	360~430VDC
MAX PV Input Voltage	500VDC
MAX PV Input Current	32A + 32A
MAX PV Charge Current	150A
MAX AC Charging Current	150A
MAX Charge Current	150A
LCD DISPLAY
Display	CAN DISPLAY OPERATING MODE/LOAD/INPUT/OUTPUT
IP GRADE
IP Grade	IP54
COMMUNICATION SPECIFICATION
Communication Port	RS232
TEMPERATURE
Operating temperature	0~50°C
Operating environment humidity	20%~95%
Storage temperature	-15~60°C
Noise	≤50DB
DIMENSION
Dimension mm(HxWxD)	662.5 X 432.6 X 131.5
