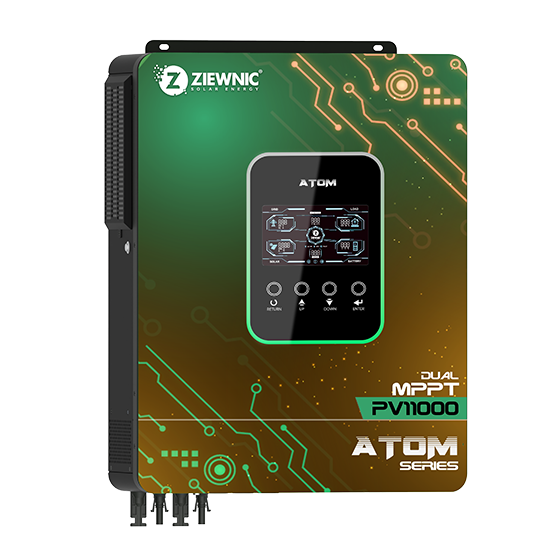

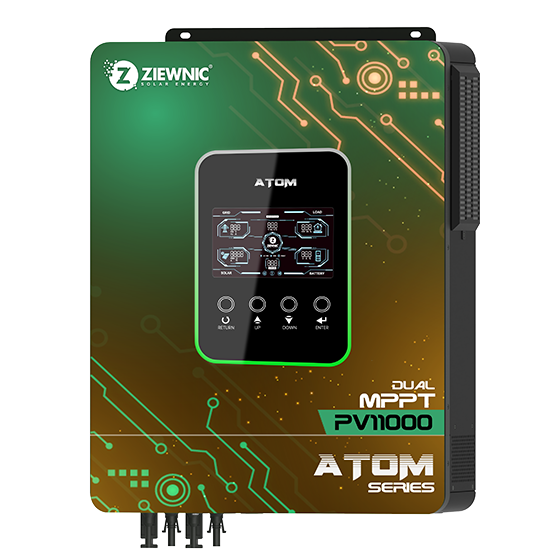

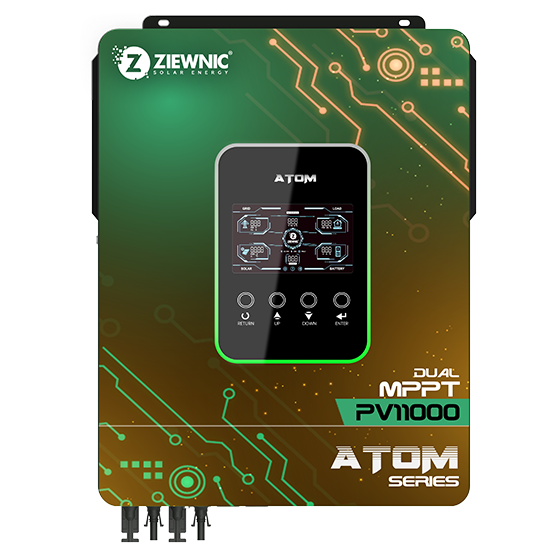

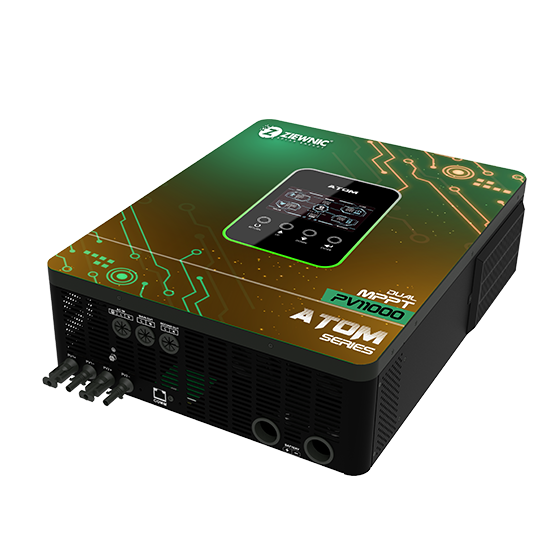

Hybrid Inverter Dual MPPT 9KW (PV 11000)

5 out of 5

INTRODUCING 1ST TIME IN PAKISTAN REAL 7TH GEN INVERTER ST SINGAPORE BASED HIGH EFFICIENCY IGBT/MOSFET
FAST PERFORMANCE CHIP. INSTANT POWER. ZERO DELAYS.
ATOM SERIES INVERTER SUPPORTS MULTIPLE OPERATION MODES
100% PURE SINE WAVE SOLAR INVERTER
OUTPUT POWER FACTOR 1.0
BUILT-IN WI-FI AVAILABLE FOR IOS/ANDROID DEVICES
INVERTER RUNNING WITH BATTERY & WITHOUT BATTERY
1 BUTTON RESTORE SETTING OPTIONS IN PROGRAM
BATTERY EQUALIZATIONS
RECORD FAULT CODE FEATURE IN PROGRAM
ADAPTABLE TO MAIN VOLTAGE / GENERATOR POWER
CONFORMAL COATING TO PREVENT FROM DUST AND HUMIDITY
BUILT-IN AUTOMATIC ELECTRONICS BREAKER FOR OVERLOAD & SHORT CIRCUIT PROTECTION
NEW COLOR SCREEN LCD FUNCTION DESIGN WITH TOUCH BUTTONS
BUILT-IN ANTI DUST FOR HARSH ENVIRONMENT
COMPATIBLE WITH ALL KINDS OF LITHIUM BATTERIES
ADJUSTABLE PARAMETERS
AUTOMATIC LITHIUM BATTERY ACTIVATION
SURGE CAPACITY 2* RATED POWER FOR 5 SECONDS
BATTERY CHARGING CURRENT UPTO 160A (AC+SOLAR)
MPPT BASED SOLAR CHARGE CONTROLLER (160A)
HIGH PV INPUT VOLTAGE RANGE (90~450 VDC)
SMART DUAL OUTPUT FOR NORMAL AND HEAVY LOAD
PV INPUT CURRENT 18X18A
BUILT-IN ZERO EXPORT

SPECIFICATION
Phase	1-Phase
Maximum PV Input Power	11000 W
Rated Output Power	9000 W
Maximum Solar Charging Current	160A
GRID TIE OPERATION
PV INPUT ( DC )
Nominal DC Voltage/Maximum DC Voltage	360 VDC/500 VDC
Maximum DC Open Circuit Voltage	500 VDC
Maximum DC Voltage	90~450 VDC
Number of MPPT Trackers/Maximum Input Current	18A+18A
GRID OUTPUT ( AC )
Nominal Output Voltage	220/230/240 VAC
Nominal Output Voltage	195.5-253 VAC
Nominal Output Current	40A
Power Factor	>0.99
Feed-in Grid Frequency Range	49~51±Hz
EFFICIENCY
Maximum Conversion Efficiency (Solar to AC)	98%
TWO LOAD OUTPUT POWER(V2.0)
Full Load	9000 W
Maximum Main Load	9000 W
Maximum Second Load(battery mode)	1640W~5740W
Main Load Cut Off Voltage	52 VDC
Main Load Return Voltage	54 VDC
AC Start-up Voltage/Auto Restart Voltage	120-140 VAC/180 VAC
OFF-GRID OPERATION
AC Input
Acceptable Input Voltage Range	90-280 VAC or 170-280 VAC
Maximum AC Input Current	40A
Nominal operating frequency	50/60Hz
Surge power	18000W
BATTERY MODE OUTPUT ( AC )
Nominal Output Voltage	220/230/240 VAC
Output Waveform	Pure Sine Wave
Efficiency(DC to AC)	94%
BATTERY & CHARGER
Nominal DC Voltage	48 VDC
Maximum Charging Current (Solar to AC)	160A
Maximum AC Charging Current	160A
GENERAL
PHYSICAL
Dimension,D x W x H(mm)	500 x 390 x 136mm
Net Weight(kgs)	14.5
INTERFACE
Communication	RS232/Wi-Fi/GPRS
ENVIRONMENT
Operating Temperature	-10~50°C
