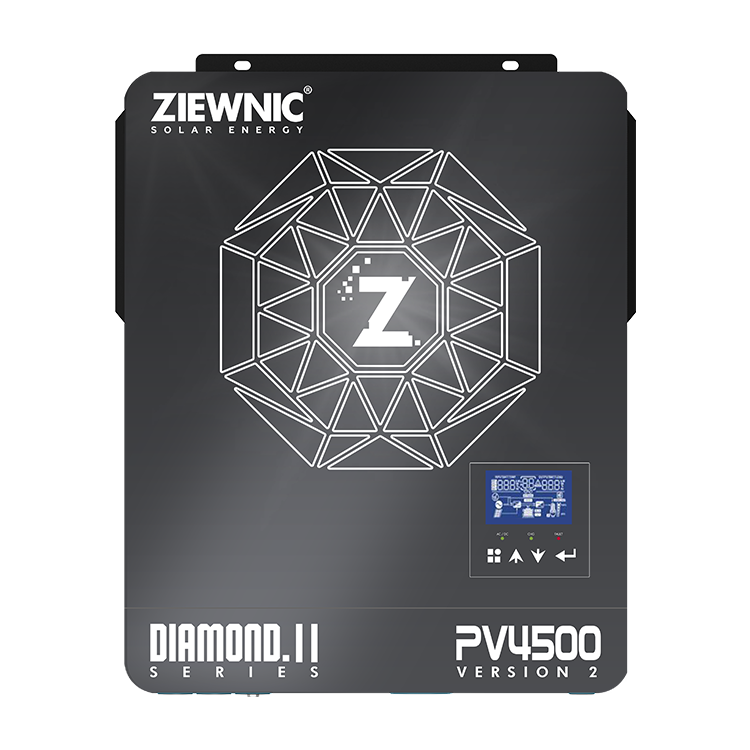

6G 1.8KW (PV4500) 24V - 48V (OFF GRID)

5 out of 5

INTRODUCING 1ST TIME IN PAKISTAN REAL 6TH GEN INVERTER, SUPPORTING HIGH EFFICIENCY MOSFET, CHOPPER WITH BIGGER SIZE.
DIAMOND II SERIES INVERTER SUPPORTS MULTIPLE OPERATION MODES
100% PURE SINE WAVE SOLAR INVERTER
OUTPUT POWER FACTOR 1.0
INVERTER RUNNING WITH BATTERY
RECORD FAULT CODE FEATURE IN PROGRAM (25)
ADAPTABLE TO MAIN VOLTAGE / GENERATOR POWER
CONFORMAL COATING TO PREVENT FROM DUST AND HUMIDITY
BUILT-IN AUTOMATIC ELECTRONICS BREAKER
UPGRADED LCD FUNCTION DESIGN WITH TOUCH BUTTONS
COMPATIBLE WITH ALL KINDS OF LITHIUM BATTERIES
98% REAL TIME SHARING
HIGH PV INPUT VOLTAGE RANGE (55~450 VDC)
OVERLOAD & SHORT CIRCUIT PROTECTION
MAXIMUM INPUT CURRENT 18A
1 BUTTON RESTORE SETTING OPTIONS IN PROGRAM (00)
OPTIONAL Wi-Fi AVAILABLE FOR IOS/ANDROID DEVICES
DESIGNED AND ENGINEERED IN TAIWAN

SPECIFICATION
Rated Power	1.8KW
AC Input
Ac Input	230 VAC
Voltage	170~280 VAC (For Personal Computer)
Selectable Voltage Range	90~280VAC (For Home Appliances)
Frequency Range	50 HZ / 60 HZ (Auto Sensing)
AC OUTPUT
AC Voltage Regulation	230 VAC + 5%
Nominal Current Output	14.54A
Efficiency (Peak) PV to INV	97%
Efficiency (Peak) Battery to INV	94%
Transfer Time	10ms Typical(MS); 20ms Stapical( Appliances)
BATTERY AND AC CHARGER
Battery Voltage	24 / 48 VDC
Floating Charge Voltage	27 / 54 VDC
Overcharge Protection	33 / 66 VDC
Maximum AC Charge Current	80A
SOLAR CHARGER
Maximum PV Array Power	4500W
MPPT Range @ Operating Voltage	55-450 VDC
Maximum PV Array Open Circuit Voltage	450 VDC
Maximum Charge Current	TRUE (MPPT) 80A
Maximum PV Input Current	18A
Maximum Efficiency	98%
PHYSICAL
Communication Interface	RS323/GPRS/Wi-Fi
OPERATING ENVIRONMNET
Humidity	5% to 95% Relative Humidity (Non~Condensing)
Operating Temperature	-10°C~50°C
Storage Temperature	-15°C-~60°C
